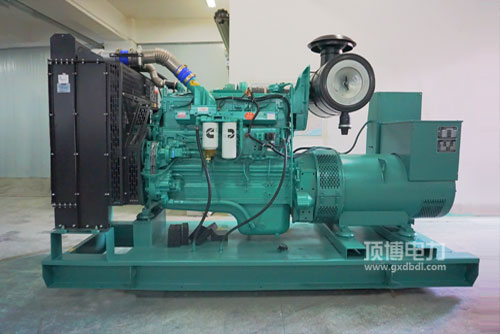

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用发起机气油经济增长性好: 现进的气油操控体系性，别具一格 的STC、ESTC 级别划分操控体系性，唯一性的设计的发动机活塞壳体熔化室，超高压喷射出气油，做好雾化吸入，熔化做好。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用打火机瞬态性优等: 非凡的打火机整体的结构设计，紧密配合康明斯特殊的EFC操作系统，操作表面粗糙性强，反映时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用汽车发行为升电机功率高: 建筑体装修设计密集.自己的外观安排合情合理，运营稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50充分考虑全球非城市道路三的时候及北美洲Tier2. Tier 3排污法律法规需要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件必得性好， 起行为电脑运行及维护清洗清洗方便，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电率超范围 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌长宽 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效果 Dry Weight   940kg

224-310KW康明斯生产发电用启倾向的结构特征：比热容小， 压缩成变高， 网格板室内空气升温，方便于重新启动，可移动车截开关电源的首推。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起驱力型号查询	所用输出(kW)Prime Power	预备工率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
